Interior Lighting / Downlighters

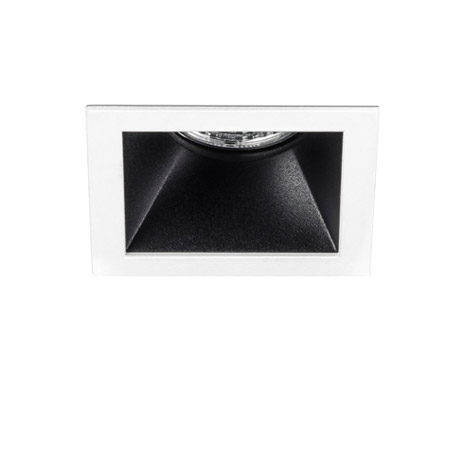

Chaffinch SQ is a small LED Downlighter, in terms of design and features it offers both comfort and efficiency with numerous options and an ideal solution for many applications. Chaffinch range has a deep set Tridonic full spectrum COB LED and also fitted with an IP44 protective lens as standard.
The darklight baffle assists with minimal glare but other options are available, white softlight baffle is a favourite.
Chaffinch SQ is an ideal replacement for LV downlighters which not only brings savings in energy but also saves any lamp replacements. Also available in twin and triple units.
Please contact us if you require any additional information.
| Product code | Light source | Colour | Size | Temp (K) | Wattage | Lumen (lm) | Data | ldt file |
|---|---|---|---|---|---|---|---|---|
| 7824108-SQ | LED | White Bezel, Black baffle | Dia. 85mm x H. 95mm | 2700K | 10W | 753lm | - | - |
| 7834108-SQ | LED | White Bezel, black baffle | Dia. 85mm x H. 95mm | 3000K | 7.5W | 769lm | - | - |
| 7844108-SQ | LED | White Bezel, Black baffle | Dia. 85mm x H. 95mm | 4000K | 7.5W | 816lm | - | - |
| 7824108-SQ-WSB | LED | White Bezel and baffle | Dia. 85mm x H. 95mm | 2700K | 10W | 734lm | - | - |
| 7834108-SQ-WSB | LED | White Bezel and baffle | Dia. 85mm x H. 95mm | 3000K | 7.5W | 749lm | - | - |
| 7844108-SQ-WSB | LED | White Bezel and baffle | Dia. 85mm x H. 95mm | 4000K | 7.5W | 795lm | - | - |
| 7824114-SQ | LED | White Bezel, Black baffle | Dia. 85mm x H. 95mm | 2700K | 13.5W | 1027lm | - | - |
| 7834112-SQ | LED | White Bezel, Black baffle | Dia. 85mm x H. 95mm | 3000K | 11.5W | 1124lm | - | - |
| 7844112-SQ | LED | White Bezel, Black baffle | Dia. 85mm x H. 95mm | 4000K | 11.5W | 1191lm | - | - |
| 7824114-SQ-WSB | LED | White Bezel and baffle | Dia. 85mm x H. 95mm | 2700K | 13.5W | 1000lm | - | - |
| 7834112-SQ-WSB | LED | White Bezel and baffle | Dia. 85mm x H. 95mm | 3000K | 11.5W | 1095lm | - | - |
| 7844112-SQ-WSB | LED | White Bezel and baffle | Dia. 85mm x H. 95mm | 4000K | 11.5W | 1161lm | - | - |
| Image(s) | Data File |
|---|---|
 White softlight baffle add WSB to code |
- |
| Image(s) | Data File |
|---|---|
| - |
| Image(s) | Data File |
|---|---|
| - |
