Interior Lighting / Suspended
Swan is a range of LED system, designed for continuous lines of light not only functional but also giving interest to any application. Available in recessed, surface or suspended. Standard lengths are below but please request alternative lumen outputs. Corners, T sections, X sections are available with continuous light output. Also various dimming and emergency options.
Swan houses the most efficient latest generation LEDs with long life and energy efficiency. Extrusions can be up to 3mts in length and then joined on site for longer requirements. Surface and recessed options can be vertically or horizontally mounted. Choice of optics and lumen output. Infills available as required and can have PIRs etc housed within. Surface mounted version has a mounting plate which is fitted to the ceiling in first fix. Suspended versions have an adjustable 1.5mt suspension supplied as standard.
Please contact us for more information or specific requirements
| Product code | Light source | Colour | Size | Temp (K) | Wattage | Lumen (lm) | Data | ldt file |
|---|---|---|---|---|---|---|---|---|
| 23844313 | LED | White | W. 60mm H. 93mm L 592mm | 4000K | 13W | 1551lm | - | - |
| 23844320 | LED | White | W. 60mm H. 93mm L 872mm | 4000K | 20W | 2328lm | - | - |
| 23844325 | LED | White | W. 60mm H. 93mm L 1152mm | 4000K | 25W | 3103lm | - | - |
| 23844331 | LED | White | W. 60mm H. 93mm L 1482mm | 4000K | 31W | 3878lm | - | - |
| 23844313-MP | LED | White | W. 60mm H. 93mm L. 592mm | 4000K | 13W | 1647lm | - | - |
| 23844320-MP | LED | White | W. 60mm H. 93mm L. 872mm | 4000K | 20W | 2470lm | - | - |
| 23844325-MP | LED | White | W. 60mm H. 93mm L. 1152mm | 4000K | 25W | 3293lm | - | - |
| 23844331-MP | LED | White | W. 60mm H. 93mm L. 1482mm | 4000K | 31W | 4117lm | - | - |
| Image(s) | Data File |
|---|---|

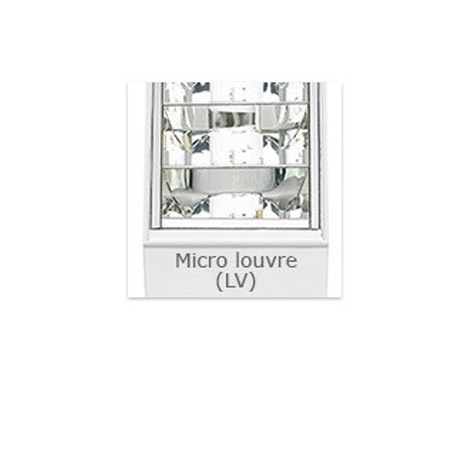

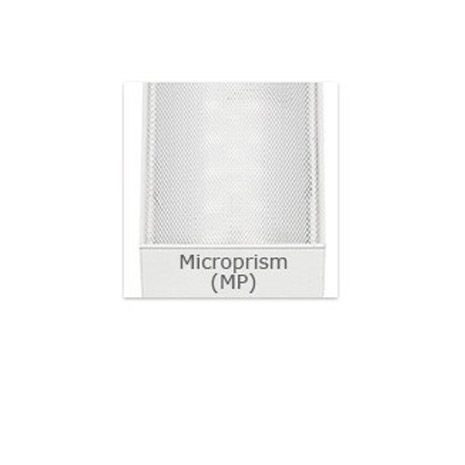

 Add MP to part code Add MLO to part code Add ML45 to part code Add ML90 to part code Add LV to part code |
- |
To find out more about our expert lighting solutions contact us on 01489 799174 or send us an email.
